Specifications for

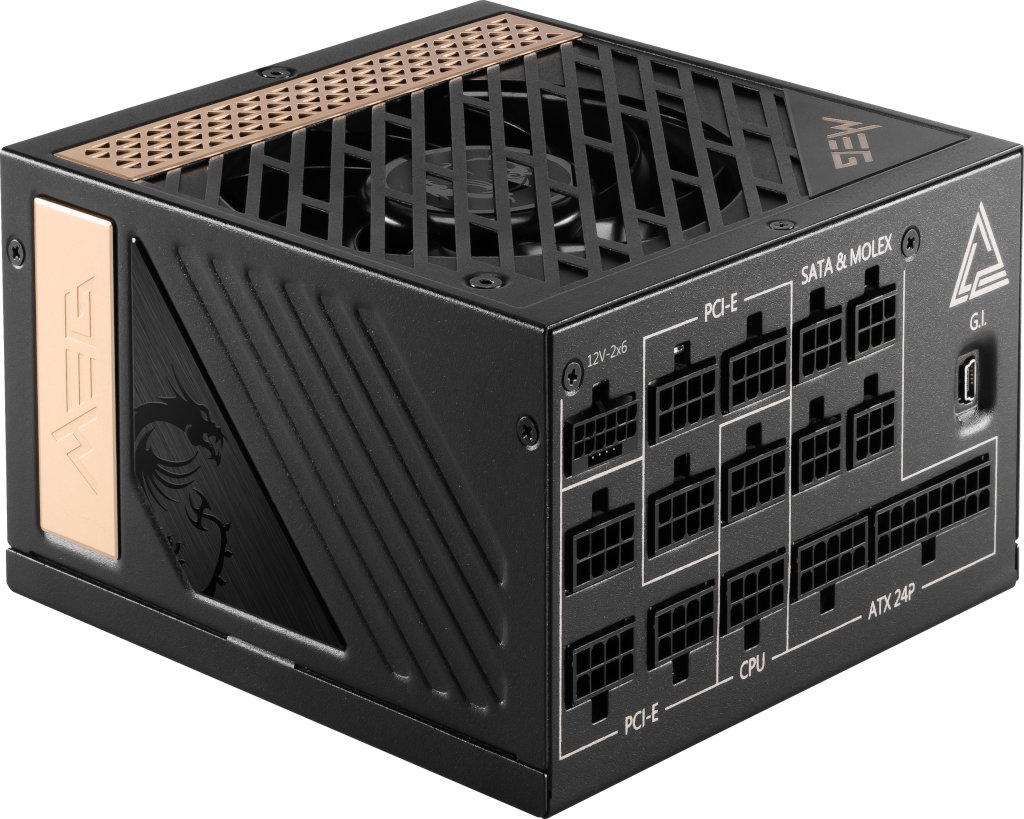

MEG Ai1300P PCIE5
PSU Form Factor
PSU Form Factor
ATX
Product Name
Product Name
MEG Ai1300P PICE5
FDD (4 pin)
FDD (4 pin)
1
MOLEX (4 pin)
MOLEX (4 pin)
4
SATA (15 pin)
SATA (15 pin)
16
PCI-E (6+2 pin)
PCI-E (6+2 pin)
8
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (600W)
EPS (4+4 PIN)
EPS (4+4 PIN)
1
EPS (8 pin)
EPS (8 pin)
1
ATX (24 pin)
ATX (24 pin)
1
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
Input Frequency
Input Frequency
50~60 Hz
Power Excursion
Power Excursion
2600W (*up to 200% of the PSU's rated power for 100μs)
Power Watt
Power Watt
1300W
Input Voltage
Input Voltage
100-240~
PFC Type
PFC Type
Active PFC
Dimensions (DxWxH)
Dimensions (DxWxH)
160 x 150 x 86 mm
Fan Bearing
Fan Bearing
Hydro Dynamic Bearing
Fan Size
Fan Size
120 mm
Modular
Modular
Yes (full modular)
Efficiency Rating
Efficiency Rating
80 PLUS Platinum (up to 92%)
