Specifications for

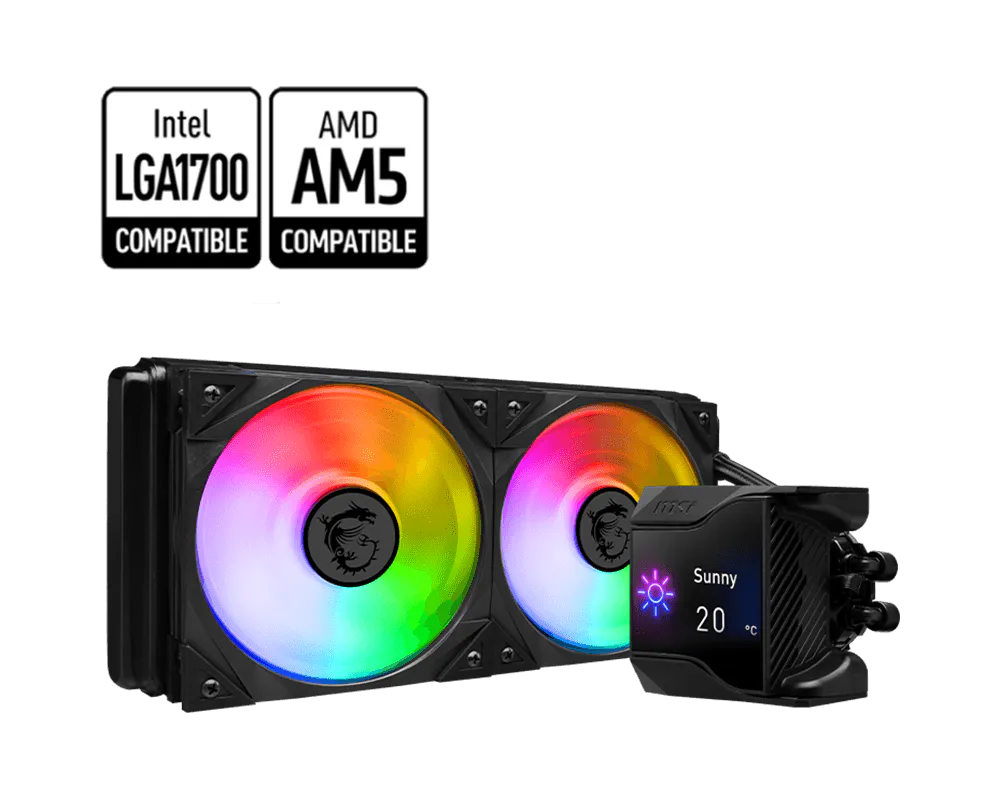

MPG CORELIQUID D240
Radiator Size
Radiator Size
240 mm
Radiator Dimensions
Radiator Dimensions
273 x 120 x 27 mm / 10.75 x 4.7 x 1.06 inches
Radiator Material
Radiator Material
Aluminum
Water Cooling Tube Material
Water Cooling Tube Material
Black Rubber + Mesh
Number of Fans
Number of Fans
2
Fan Dimensions
Fan Dimensions
120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow
Fan Air Flow
77.4 CFM
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Life Expectancy
Fan Life Expectancy
100,000 Hours
Fan Rated Current
Fan Rated Current
0.28A (MAX)
Fan Power Consumption
Fan Power Consumption
3.36W (MAX)
Fan Lighting
Fan Lighting
ARGB
PWM Mode
PWM Mode
Yes
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
350 mm / 13.78 inches
Block Dimensions
Block Dimensions
95 x 95 x 83.53 mm
Fan Connector
Fan Connector
4-pin PWM
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Pump Noise Level
Pump Noise Level
21.2 dBA
RGB Connector
RGB Connector
3-pin
Pump Speed
Pump Speed
2800 ± 300 RPM (PWM controlled)
Pump Rated Current
Pump Rated Current
0.3 A
Pump Power Consumption
Pump Power Consumption
4 W
Pump Connector
Pump Connector
4-pin PWM
Cold Plate Material
Cold Plate Material
Copper
Panel Size
Panel Size
2.4"
Intel Socket
Intel Socket
LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150
Panel Type
Panel Type
IPS
AMD Socket
AMD Socket
AM5 / AM4
Panel Resolution
Panel Resolution
320 x 240
Panel Brightness
Panel Brightness
500 nits
Interface Connector
Interface Connector
USB 2.0 pin header
Power Connector
Power Connector
SATA
Accessories
Accessories
1 x 1 to 2 ARGB Splitter Cable
Thermal Paste
Thermal Paste
