Specifications for

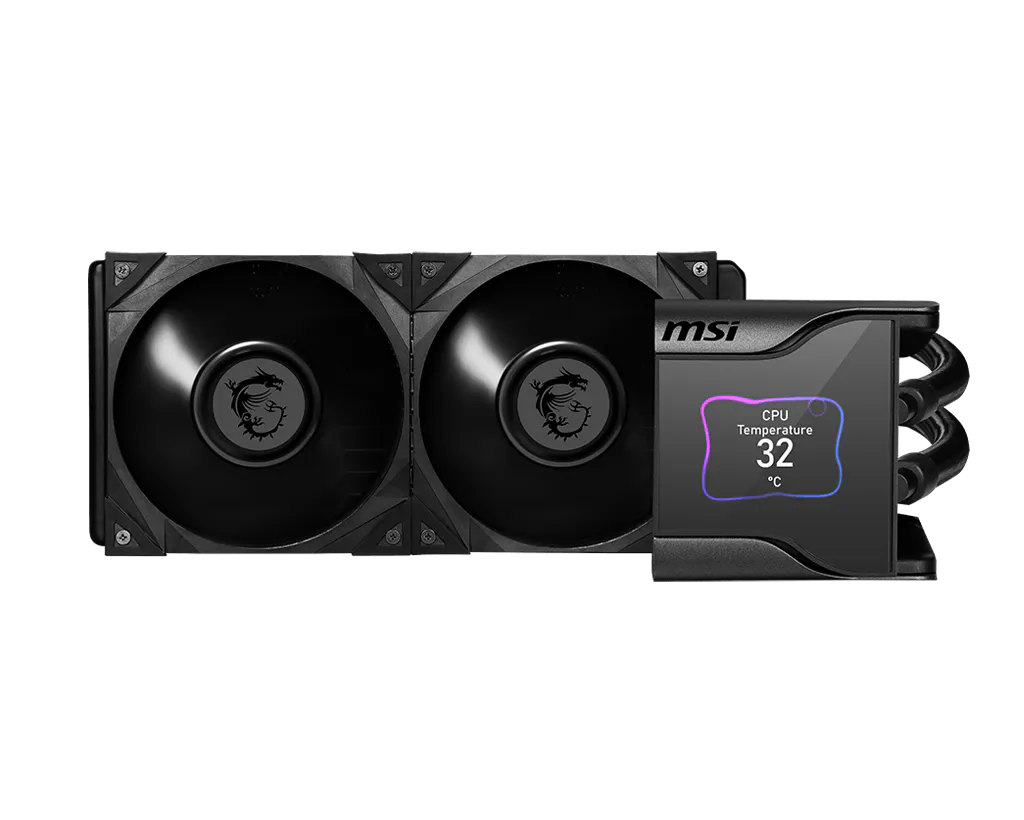

MEG CORELIQUID S280
Power Connector
Power Connector
SATA
Interface Connector
Interface Connector
USB 2.0 pin header
Panel Brightness
Panel Brightness
500 nits
Panel Resolution
Panel Resolution
320 x 240
Panel Type
Panel Type
IPS
AMD Socket
AMD Socket
AM5 / AM4
Intel Socket
Intel Socket
LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
Panel Size
Panel Size
2.4"
Cold Plate Material
Cold Plate Material
Copper
Pump Connector
Pump Connector
4 pin PWM
Pump Power Consumption
Pump Power Consumption
4W
Pump Rated Current
Pump Rated Current
0.3 A
Pump Speed
Pump Speed
2800 +/-300 RPM (PWM controlled)
Pump Noise Level
Pump Noise Level
21.2 dBA
Pump Life Expectancy
Pump Life Expectancy
50,000 Hours
Fan Connector
Fan Connector
4 pin PWM
Block Dimensions
Block Dimensions
95 x 95 x 83.53 mm
Fan Cable Length (5V ARGB / PWM cable)
Fan Cable Length (5V ARGB / PWM cable)
350 mm / 13.78 inches
PWM Mode
PWM Mode
Yes
Fan Power Consumption
Fan Power Consumption
6.6 W (MAX)
Fan Rated Current
Fan Rated Current
0.55 A (MAX)
Fan Life Expectancy
Fan Life Expectancy
50,000 Hours
Fan Bearing
Fan Bearing
Hydro-Dynamic Bearing
Fan Air Flow
Fan Air Flow
82.27 CFM
Fan Dimensions
Fan Dimensions
140 x 140 x 27.5mm / 5.51 x 5.51 x 1.08 inches
Number of Fans
Number of Fans
2
Water Cooling Tube Material
Water Cooling Tube Material
Black Rubber + Mesh
Radiator Material
Radiator Material
Aluminum
Radiator Dimensions
Radiator Dimensions
315 x 143 x 30 mm / 12.4 x 5.63 x 1.18 inches
Radiator Size
Radiator Size
280 mm
